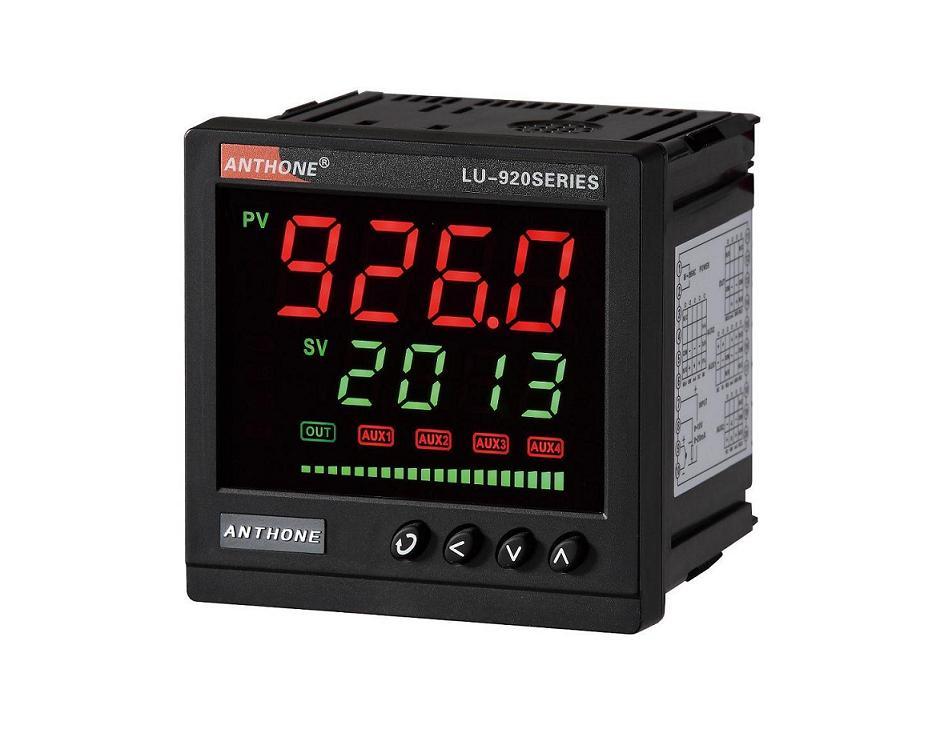

LU-921M memory type two channels controller has two independent channels,the input of them maybe different.The fast and accurate non-linear algorithm ensures the accuracy of digitized sampling.



It can achieve the function of differential algorithm alarm or transform through the parameters setting of alarm source and transform source.





2. Main Technical Parameters



●Accuracy: ±(0.2%F.S.+1)digit

●Resolution: 1℃ , 0.1℃

●Control method: ON/OFF

●Display: double 4-bit LED +light pillar

●Input type:

T.C: S(-50~1768℃),R(-50~1768℃),B(250~1820℃),

K(-200~1372℃),N(-200~1300℃),E(-200~1000℃),

J(-200~1200℃), T(-200~400℃).

RTD:Pt100(-200~800℃),Cu50(-50~150℃),Cu100(-50~150℃)

standard mV signal: 0-100mV

standard resister signal: 0-500 ohm

standard voltage signal: 0-10V,0-5V,1-5V,self-defined 0-10V

standard current signal: 4-20mA,0-10mA,self-defined 0-20mA

●Output modules:

J8:relay output (250VAC/3A,normally open+normally close)

J9:relay output (250VAC/0.8A,normally open+normally close)

J7:double relay output (250VAC/0.8A,normally open)

G1:SSR trigger output (12V/30mA)

I5: control / transform current output

U5: control / transform voltage output

V6/V7: 12V/24V 50mA sensor power supply

S2: RS232 communication

S4: RS485 communication

M1:2nd sampling input (T.C,RTD,0-5V,1-5V)

M3:2nd sampling input (T.C,RTD,0-10mA,4-20mA)

●T.C cold Junction compensation error: ±1℃

●T.C.break or over range: display Sb

●Sampling period: 0.5 second

●Power voltage: 85~265VAC

●Power consumption: <4W
