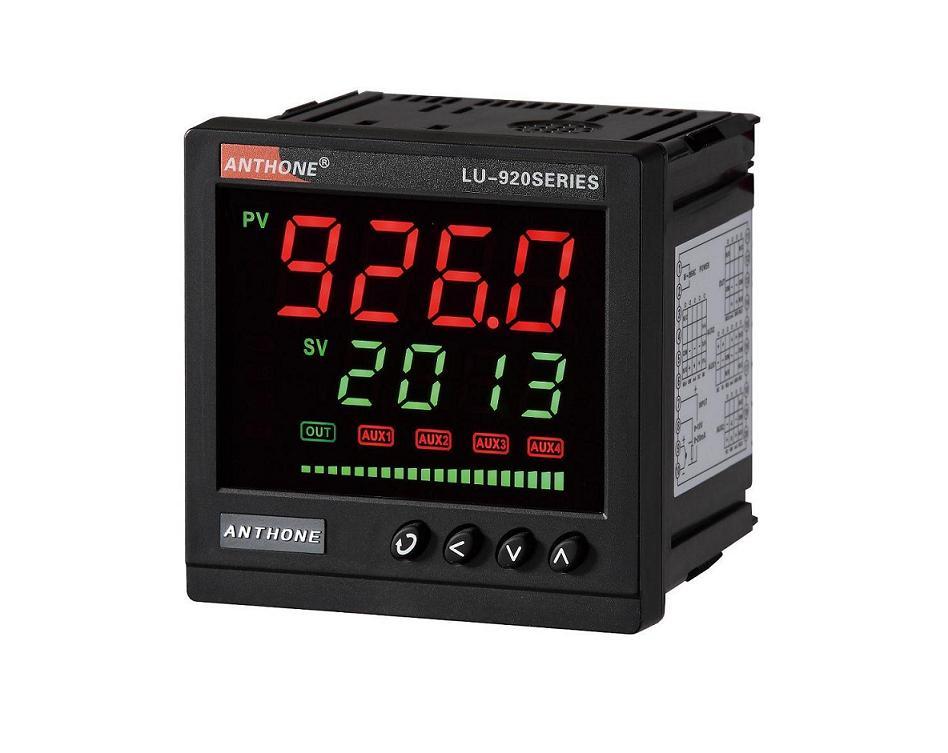

LU-926S memory type intelligent PID controller has been added the functions of three-phase phase-shift trigger output and time delay relay output based on LU-926M.



It has various control methods and the intelligent control adopts the combined control method of fuzzy theory and traditional PID,which enable the control process quick respond,small over modulation and high precision in stable state,especially has obvious effect on the large pure lag object which is difficult to be controlled by traditional PID.The control algorithm has auto-tuning function.It has rich control methods of set value,it has two setpoint registers,and can switch between external setpoint and event trigger setpoint.



Auxiliary 2nd sampling input can be as the external setpoint set values signal input and also can work with alarm source and transform source parameters setting to achieve differential algorithm alarm or transform.



It is specially used in automatic control system of temperature, flow, pressure and level of light industry machines,ovens,test equipments,and heating/cooling equipment,etc..



2. Main Technical Parameters



●Accuracy: ±(0.2%F.S.+1)digit

●Resolution: 1℃ , 0.1℃

●Control method:ON/OFF,manual control,PID with auto-tuning

●Display: double 4-bit LED +light pillar

●Input type:

T.C: S(-50~1768℃),R(-50~1768℃),B(250~1820℃),

K(-200~1372℃),N(-200~1300℃),E(-200~1000℃),

J(-200~1200℃), T(-200~400℃).

RTD:Pt100(-200~800℃),Cu50(-50~150℃),Cu100(-50~150℃)

standard mV signal: 0-100mV

standard resister signal: 0-500 ohm

standard voltage signal: 0-10V,0-5V,1-5V,self-defined 0-10V

standard current signal: 4-20mA,0-10mA,self-defined 0-20mA

●Output modules:

J8:relay output (250VAC/3A,normally open+normally close)

J9:relay output (250VAC/0.8A,normally open+normally close)

J7:double relay output (250VAC/0.8A,normally open)

G1: SSR trigger output

T5:single-circuit silicon-controlled zero-crossing trigger

T6:two-circuit silicon-controlled zero-crossing trigger

C5:3-phase 4-wire silicon-controlled phase-shift trigger

C6:3-phase 3-wire silicon-controlled phase-shift trigger

C8:single-phase silicon-controlled phase-shift trigger

C9:3-phase 4-wire silicon-controlled NC phase-shift trigger

I5: control / transform current output

U5: control / transform voltage output

V6/V7: 12V/24V 50mA sensor power supply

S2: RS232 communication

S4: RS485 communication

D1: switch signal input

M1: 2nd sampling input (T.C,RTD )

M3: 2nd sampling input (0-10mA,4-20mA)

M5: 2nd sampling input (0-5V,1-5V)

●T.C cold Junction compensation error: ±1℃

●T.C.break or over range: display Sb

●Sampling period: 0.5 second

●Power voltage: 85~265VAC

●Power consumption: <4W
